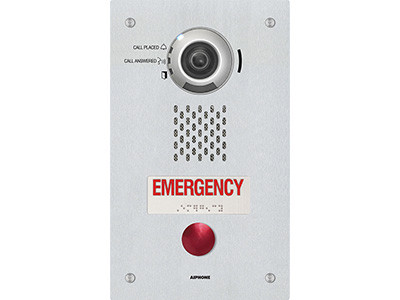

SIP Compatible IP Video Emergency Station
ADA Compliant with a Single Emergency Call Button

FEATURES

• Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
• ONVIF® Profile S Compliant
• Emergency call button
• ADA compliant raised lettering and Braille signage
• 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
• 1.23 megapixel fixed color video camera
• Camera vertical adjustment +15º, 0º, or -8º (manual)
• Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
• IP65 rated, weather resistant
• Stainless steel faceplate
• 2 contact outputs
• 6 trigger inputs

 SPECS

Power Source

PoE (IEEE 802.3af class 0)

Power Draw

5.28 Watts

Camera

⅓" CMOS 1.23 megapixel

Min. illumination

5 lux

Audio Codec

G.711 (μ-law, A law), G.722

Video Codec

H.264/AVC, motion JPEG

Protocols

IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS

Port Security

IEEE 802.1X

Operating Temp

-40° - 140°F (-40° - 60°C)

Ingress Protection

IP65

Impact Protection

IK07

Mounting

Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers.
